L-505.APx Adapter Bracket

L-505.APx Adapter Bracket

For Mounting L-505 Linear Stages Vertically

  • Simple Z mounting of L-505 linear stages
  • Delivery includes mounting kit
to content

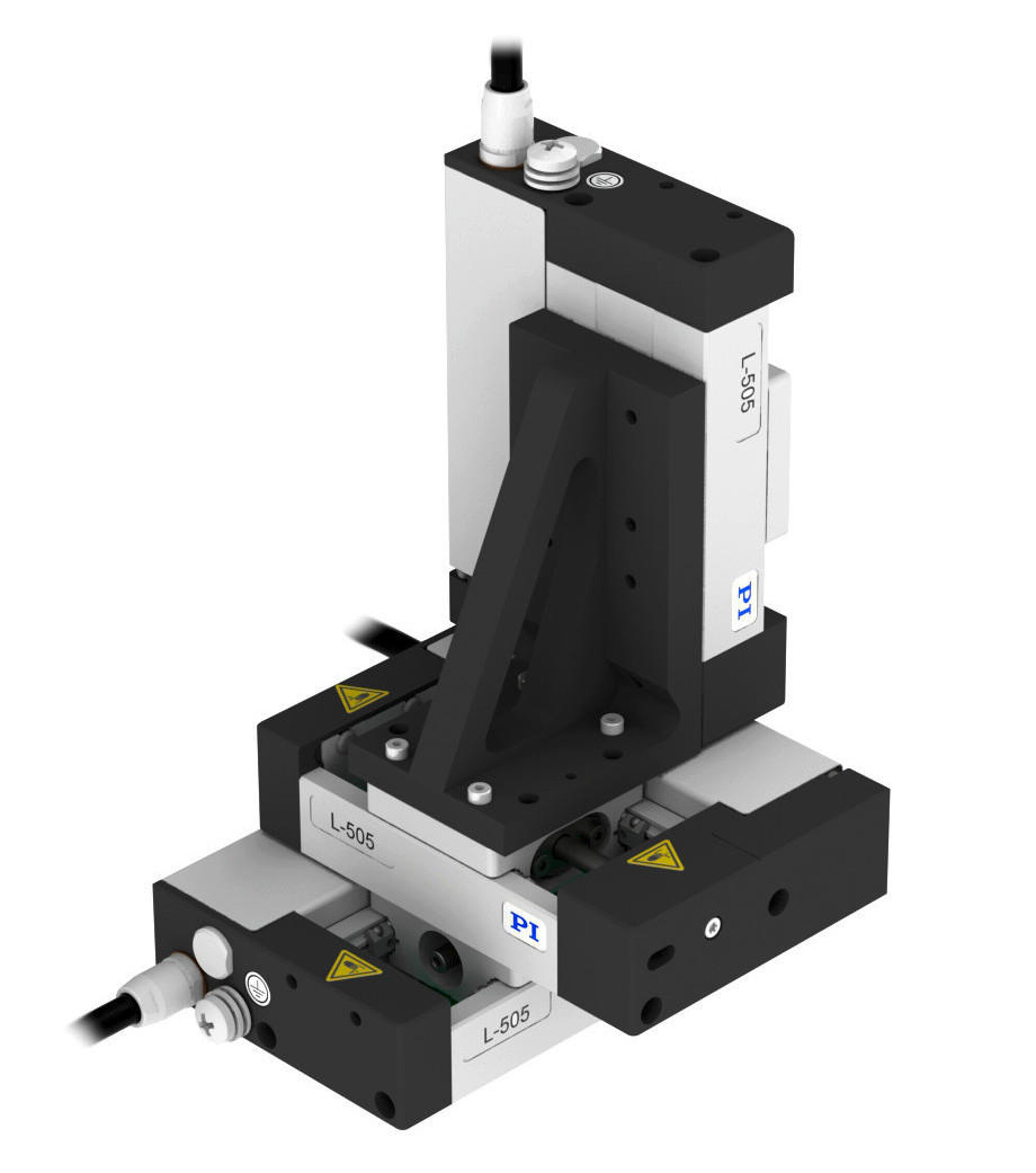

XYZ assembly consisting of three L-505.023212F linear stages and L-505.AP1 adapter bracket

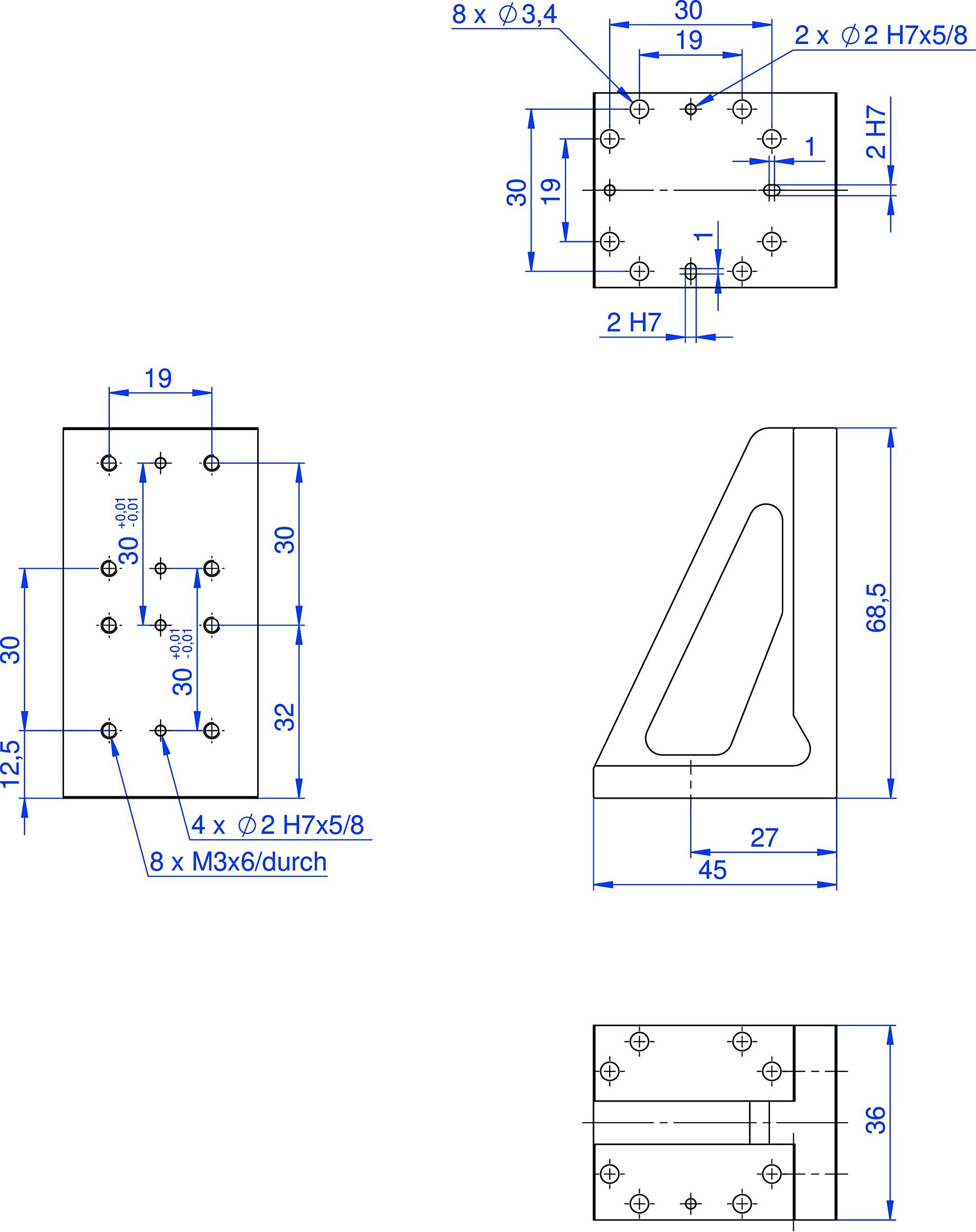

L-505.AP1, dimensions in mm

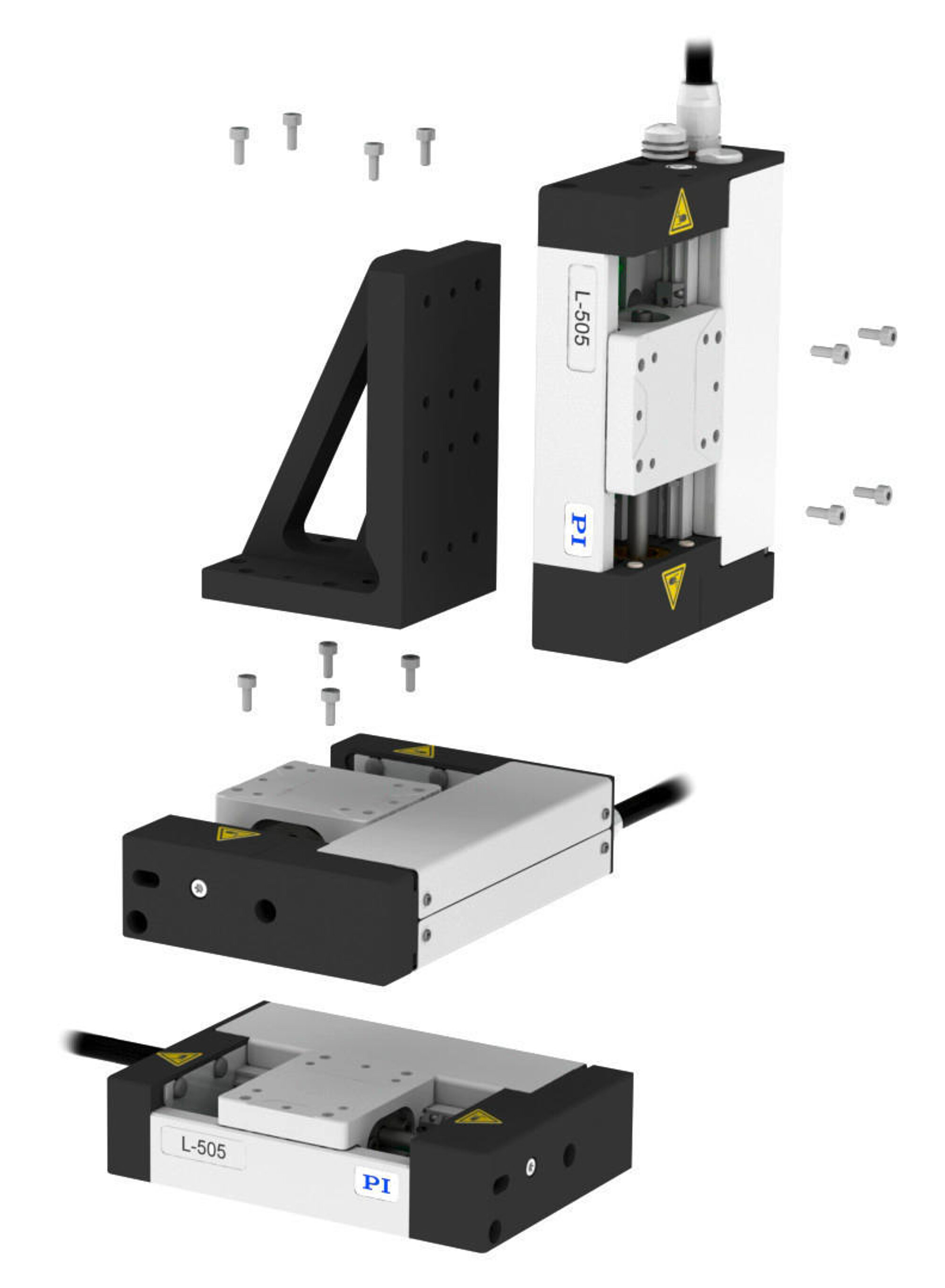

Exploded view of an XYZ assembly consisting of three L-505.023212F linear stages and L-505.AP1 adapter bracket

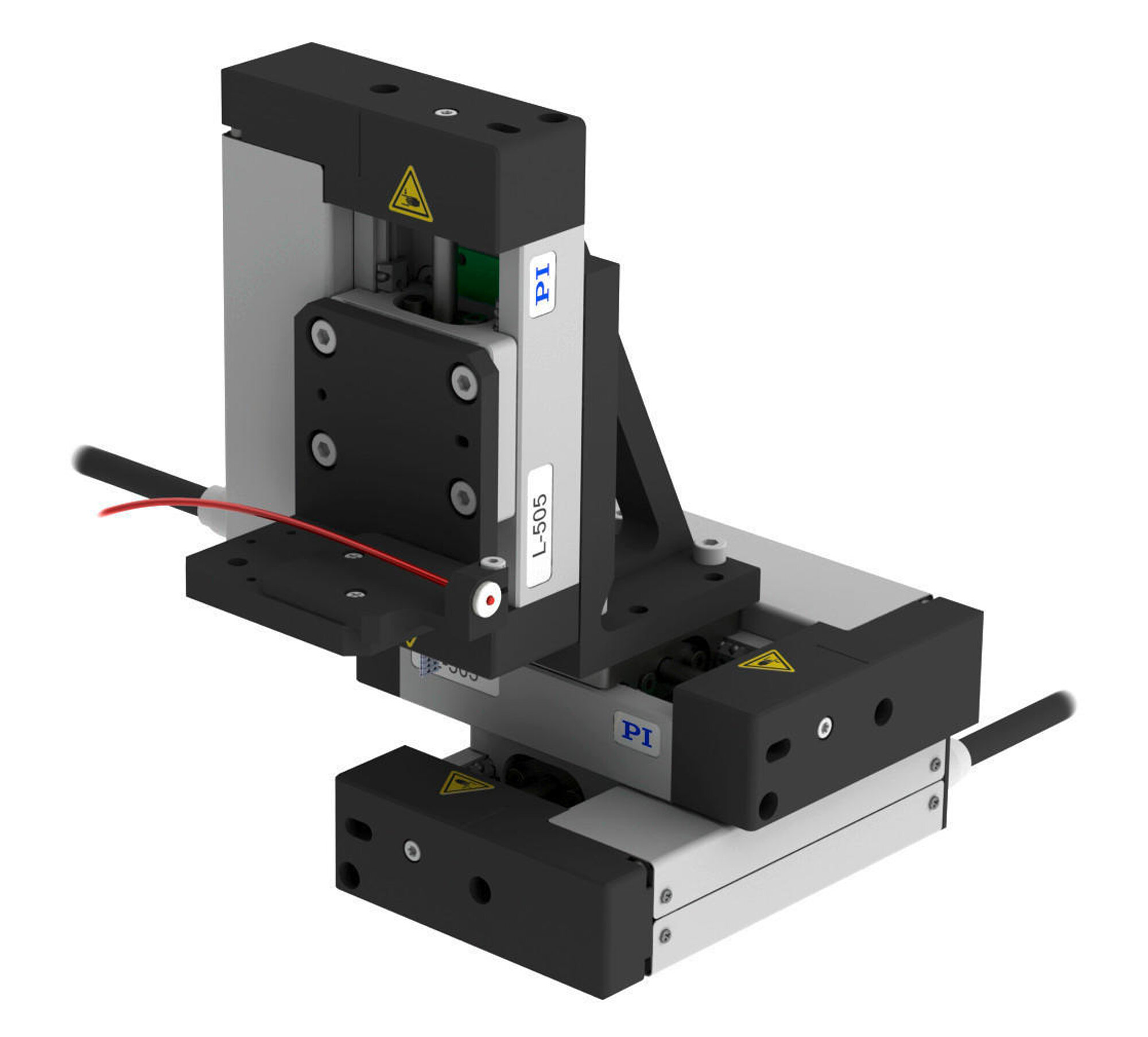

XYZ assembly for fiber alignment consisting of three L-505.023212F linear stages
L-505.APx Adapter Bracket
产品描述 规格 下载 报价/订购
转到规格

Specifications

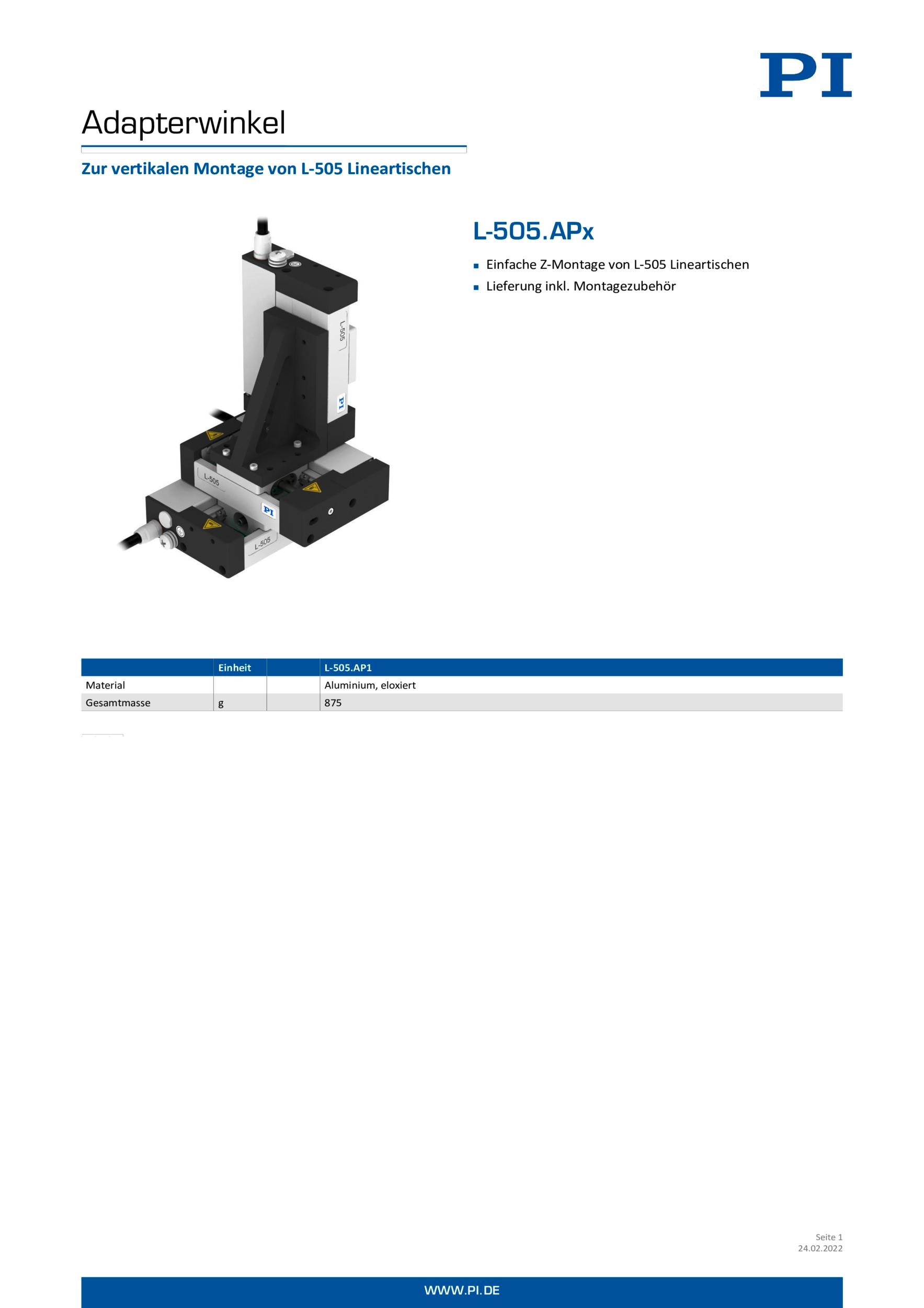

数据表

DatasheetL-505.APx
