P-725.xxM • P-725.xxL • P-725.xxS Thread Adapters for PIFOC Focus Scanners

新产品

Easy Integration of the PIFOC Positioner to a Microscope (suitable for P-725.xCDE2)

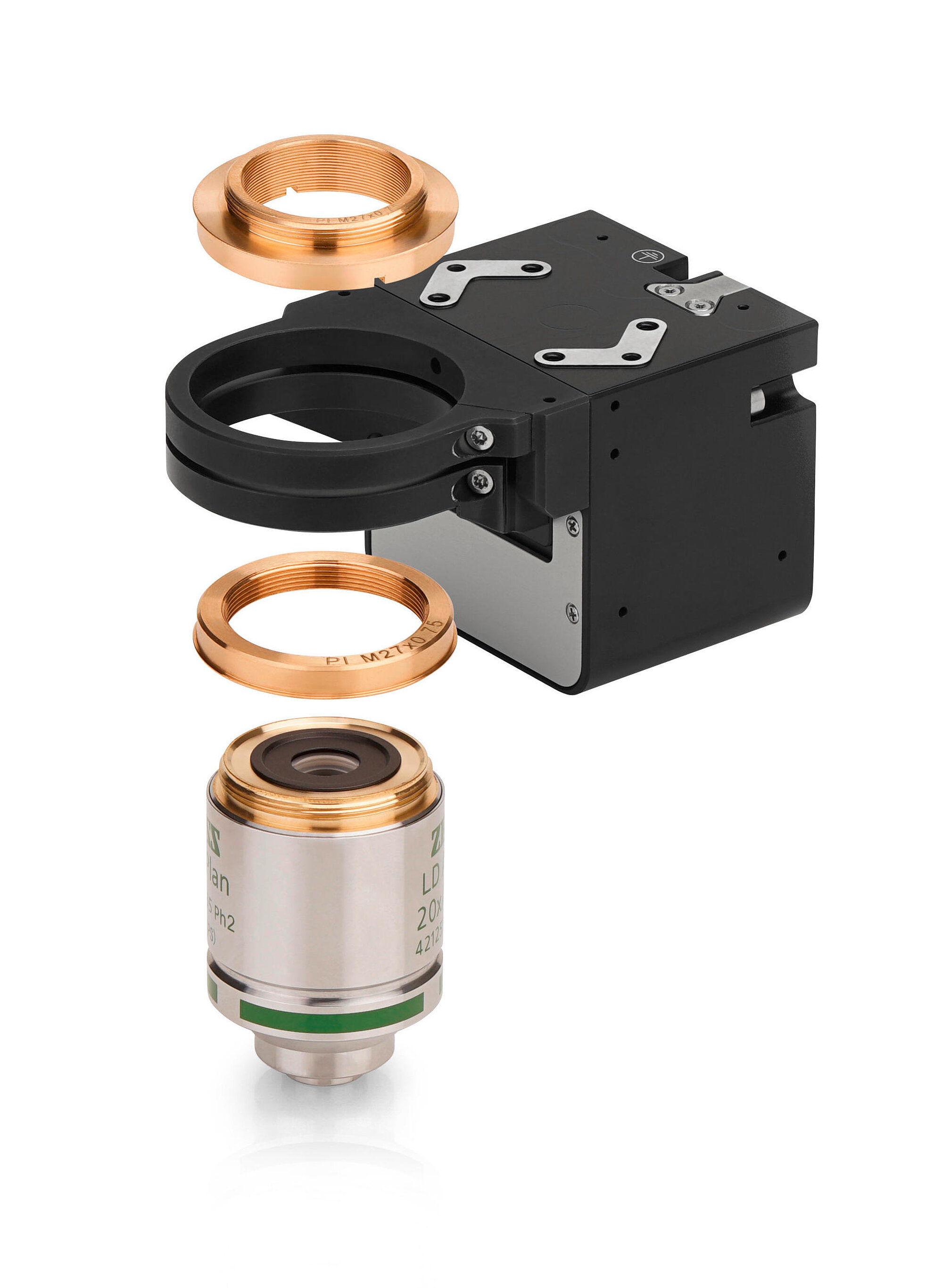

Thread adapters to easily adapt PIFOC positioners to a microscope
Twist-free cable routing
Objective spacers for correcting the parfocal length

Threaded adapter and spacers for P-725.xCDE2

P-725.xxL, P-725.xxM, dimensions in mm

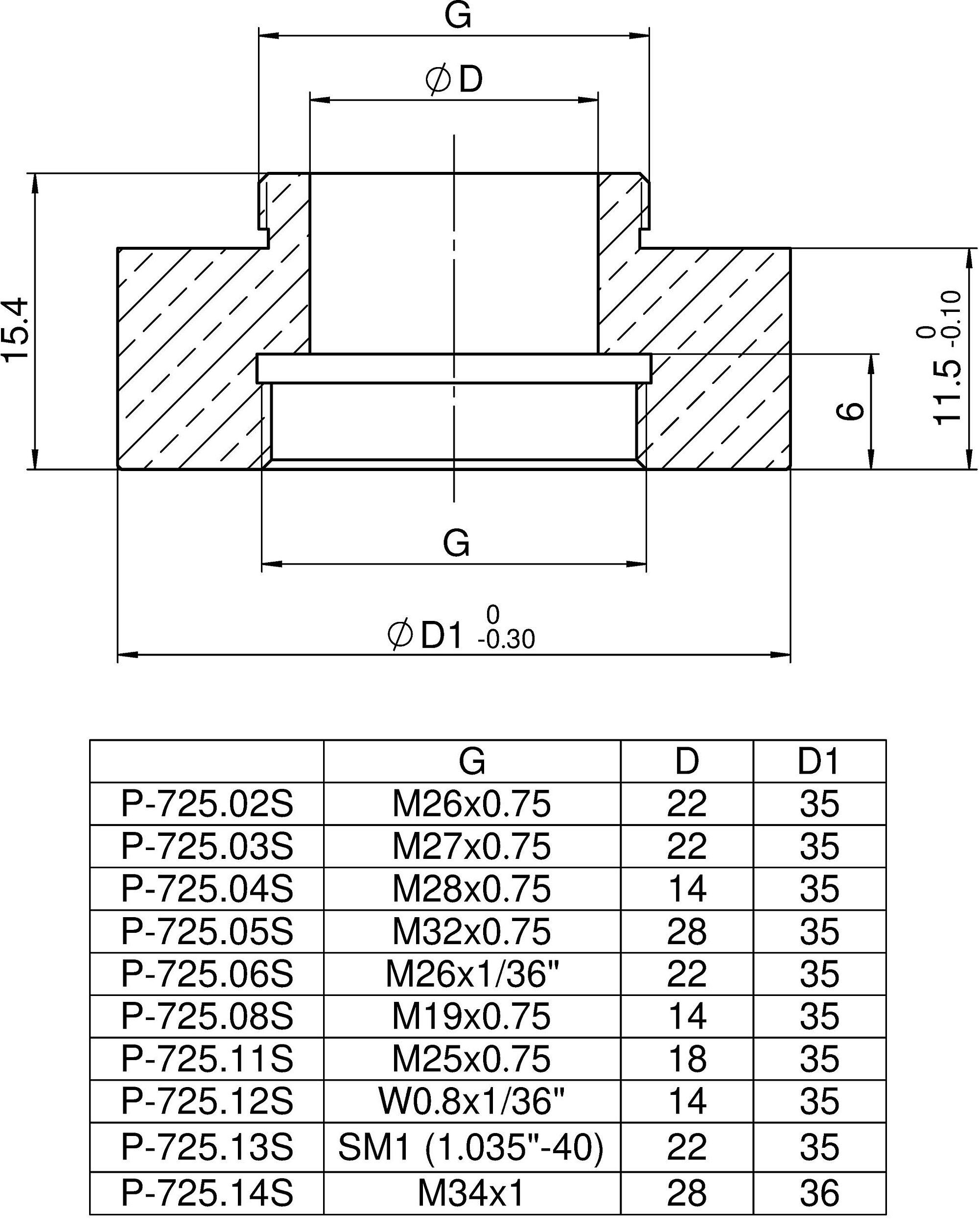

P-725.xxS, dimensions in mm

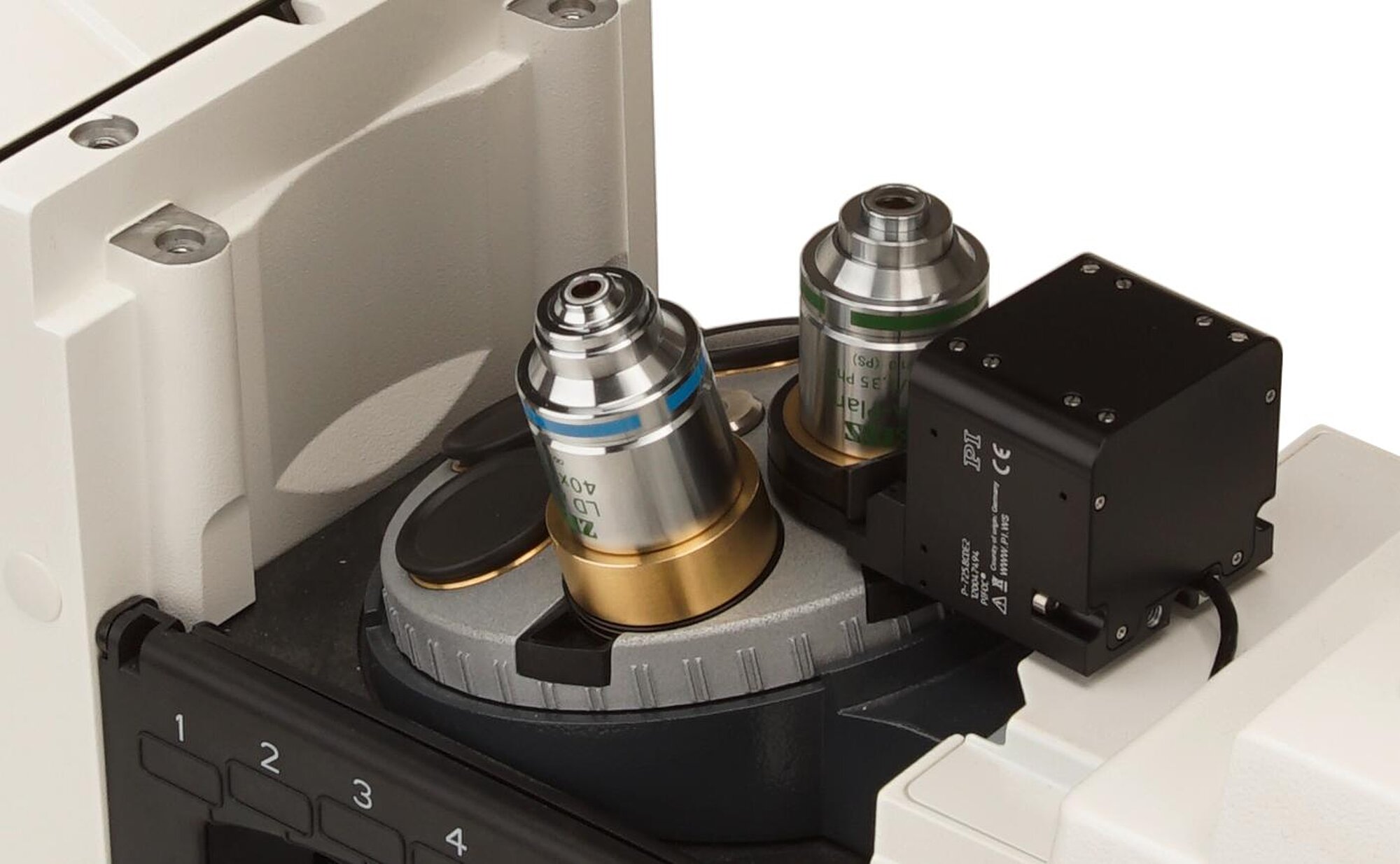

P-725.8CDE2 with P-725.03x thread adapters and P-725.03S spacer inserted between the revolving nosepiece of the microscope and the objective

The PIFOC objective positioners are inserted with the thread adapters between the microscope's revolving nosepiece and objective. After the adapter has been screwed into the revolving nosepiece, the PIFOC positioner is orientated as desired and fixed to the adapter. It is not necessary to turn the PIFOC positioner while doing this and it simplifies routing the cable.

下载数据表转到规格

数据表

版本/日期

2022-05-13

pdf - 1 MB

版本/日期

2022-05-13

pdf - 1 MB

下载

	P-725.02M	P-725.03M	P-725.04M	P-725.05M	P-725.06M	P-725.08M	P-725.11M	P-725.12M	P-725.13M	P-725.14M	P-725.02L	P-725.03L	P-725.04L	P-725.05L	P-725.06L	P-725.08L	P-725.11L	P-725.12L	P-725.13L	P-725.14L	P-725.02S	P-725.03S	P-725.04S	P-725.05S	P-725.06S	P-725.08S	P-725.11S	P-725.12S	P-725.13S	P-725.14S
Aperture diameter	22 mm	22 mm	22 mm	25 mm	22 mm	15 mm	22 mm	16 mm	22 mm	28 mm	22 mm	22 mm	22 mm	25 mm	22 mm	15 mm	22 mm	16 mm	22 mm	28 mm	22 mm	22 mm	14 mm	28 mm	22 mm	14 mm	18 mm	14 mm	22 mm	28 mm
Material	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass
Thread on the microscope side	M26 × 0.75 mm	M27 × 0.75 mm	M28 × 0.75 mm	M32 × 0.75 mm	M26 × 1/36"	M19 × 0.75 mm	M25 × 0.75 mm	W0.8 × 1/36"	1,035"-40 (SM1)	M34 × 1 mm											M26 × 0.75 mm	M27 × 0.75 mm	M28 × 0.75 mm	M32 × 0.75 mm	M26 × 1/36"	M19 × 0.75 mm	M25 × 0.75 mm	W0.8 × 1/36"	1,035"-40 (SM1)	M34 × 1 mm
Overall mass	50 g	50 g	50 g	50 g	50 g	50 g	50 g	50 g	50 g	50 g	50 g	50 g	50 g	50 g	50 g	50 g	50 g	50 g	50 g	50 g	50 g	50 g	70 g	30 g	50 g	80 g	60 g	80 g	50 g	30 g
Operating temperature range	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C
Thread on the objective side											M26 × 0.75 mm	M27 × 0.75 mm	M28 × 0.75 mm	M32 × 0.75 mm	M26 × 1/36"	M19 × 0.75 mm	M25× 0.75 mm	W0.8 × 1/36"	1,035"-40 (SM1)	M34 × 1 mm	M26 × 0.75 mm	M27 × 0.75 mm	M28 × 0.75 mm	M32 × 0.75 mm	M26 × 1/36"	M19 × 0.75 mm	M25× 0.75 mm	W0.8 × 1/36"	1,035"-40 (SM1)	M34 × 1 mm

下载数据表转到下载

数据表

版本/日期

2022-05-13

pdf - 1 MB

版本/日期

2022-05-13

pdf - 1 MB

下载

3D模型

版本/日期

2021-11-30

zip - 78 KB

3D模型

版本/日期

2021-11-30

zip - 85 KB

3D模型

版本/日期

2021-11-30

zip - 51 KB

转到报价/订购

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

P-725.02M 新产品!

Thread adapter for microscope, M26 x 0.75, aperture diameter 22 mm

Specifications

DatasheetP-725.xxM • P-725.xxL • P-725.xxS

Specifications

Downloads

数据表

DatasheetP-725.xxM • P-725.xxL • P-725.xxS

3D模型

3-DmodelP-725.xxS

3-DmodelP-725.xxM

3-DmodelP-725.xxL
