V-817.xxHxx Drag Chain for V-817 Positionierers

新产品

Cable Management for V-817 Linear Stages and XY Assemblies

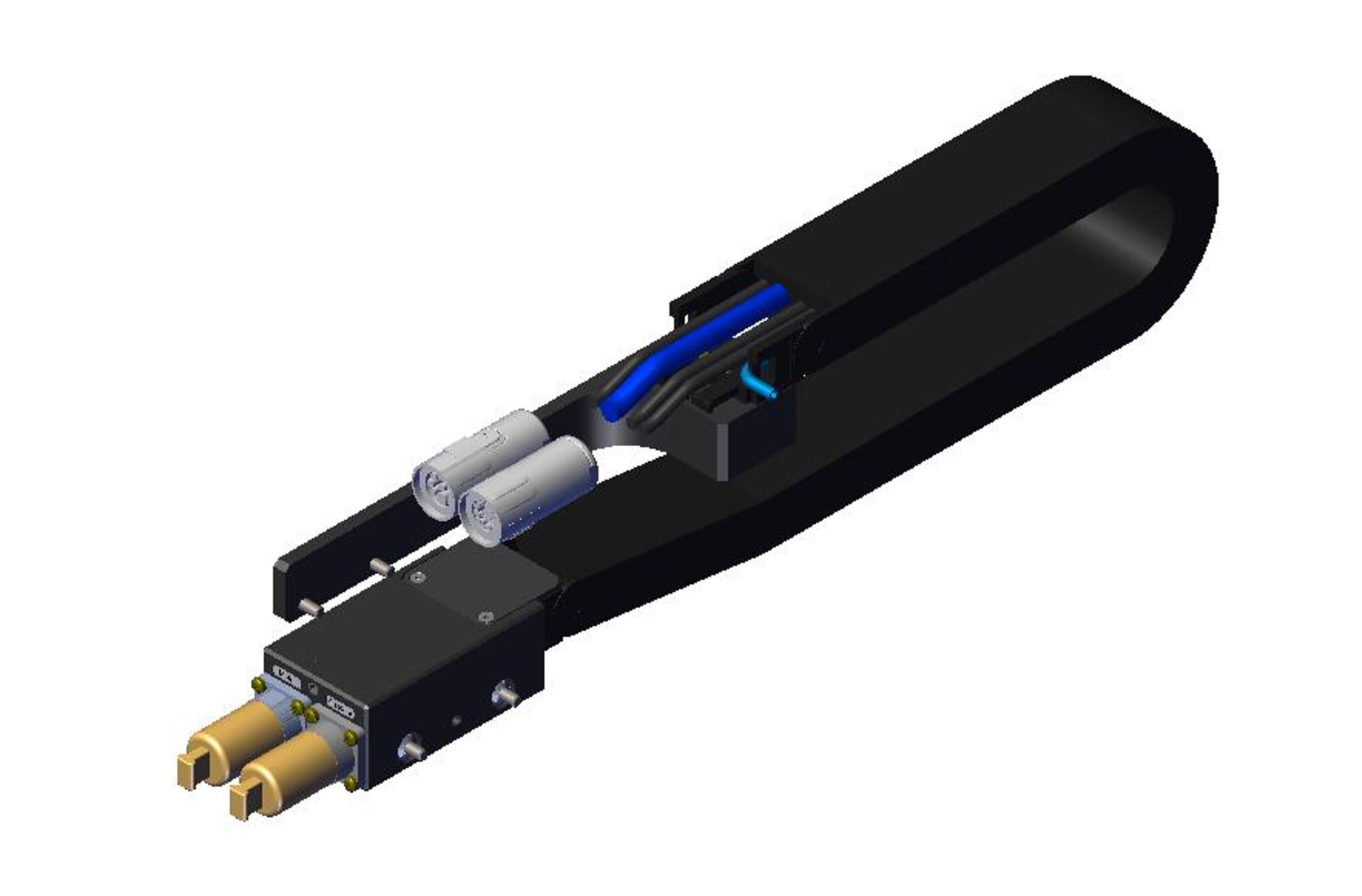

V-817.E1H17: Drag chain for V-817 linear stage with 407 mm travel range

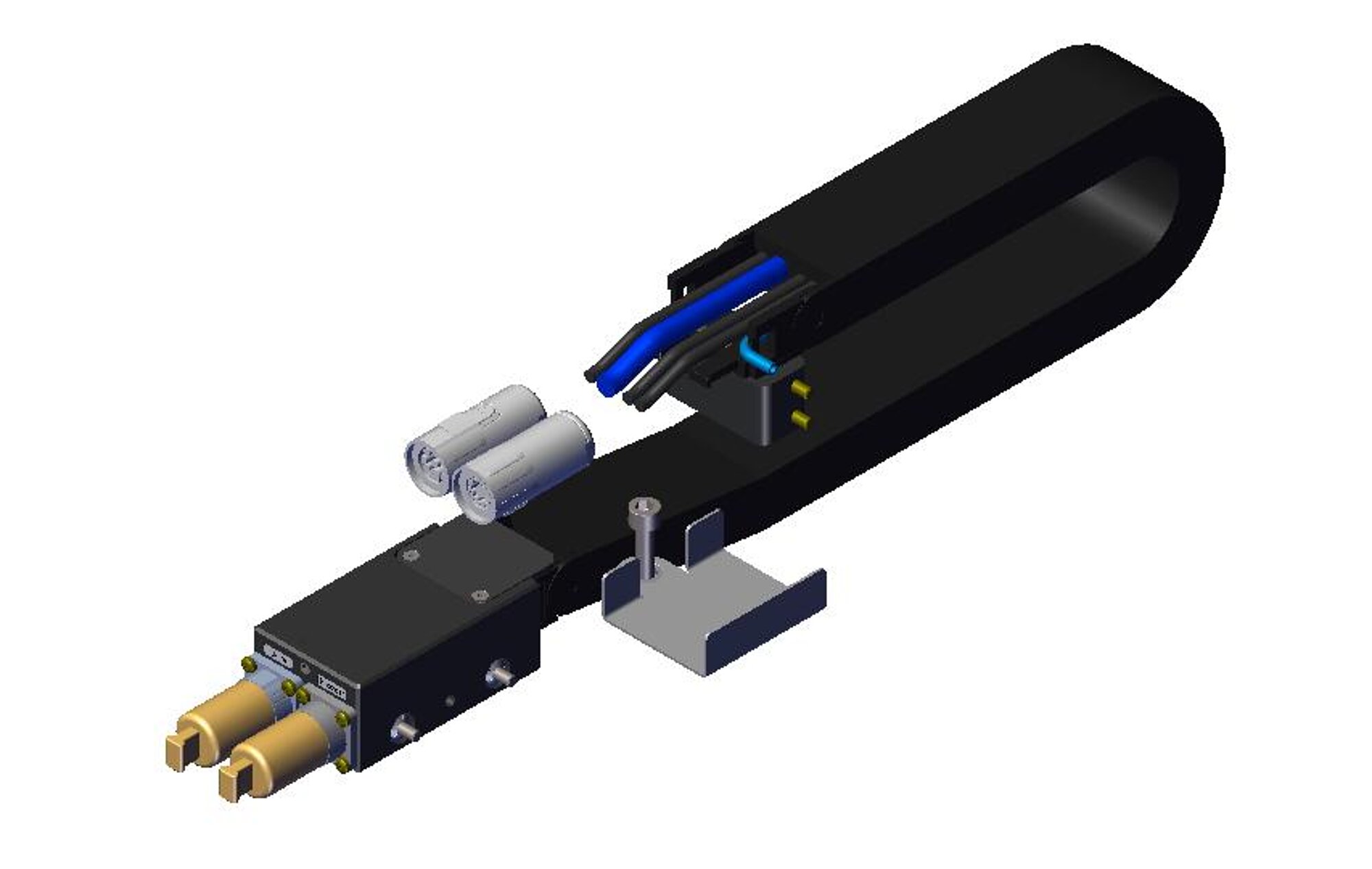

V-817.XYH17: Drag chain for XY assembly on V-817 linear stage with 407 mm travel range

Drag chains for linear stages

V-817.096xxxE0 - 204 mm travel range: V-817.E1H09

V-817.176xxxE0 - 407 mm travel range: V-817.E1H17

V-817.256xxxE0 - 610 mm travel range: V-817.E1H25

V-817.336xxxE0 - 813 mm travel range: V-817.E1H33

Drag chains for XY assemblies

V-817.096xxxE0 - 204 mm travel range: V-817.XYH09

V-817.176xxxE0 - 407 mm travel range: V-817.XYH17

V-817.256xxxE0 - 610 mm travel range: V-817.XYH25

V-817.336xxxE0 - 813 mm travel range: V-817.XYH33

数据表

版本/日期

2022-08-23

pdf - 215 KB

版本/日期

2022-08-23

pdf - 216 KB

	V-817.E1H09	V-817.E1H17	V-817.E1H25	V-817.E1H33	V-817.XYH09	V-817.XYH17	V-817.XYH25	V-817.XYH33
Material	Aluminum, black anodized	Aluminum, black anodized	Aluminum, black anodized	Aluminum, black anodized	Aluminum, black anodized	Aluminum, black anodized	Aluminum, black anodized	Aluminum, black anodized
Overall mass	694 g	745 g	779 g	821 g	703 g	736 g	788 g	830 g
Maximum acceleration	0.5 m/s²	0.5 m/s²	0.5 m/s²	0.5 m/s²	0.5 m/s²	0.5 m/s²	0.5 m/s²	0.5 m/s²
Maximum velocity	3 m/s	3 m/s	3 m/s	3 m/s	3 m/s	3 m/s	3 m/s	3 m/s
Length	610 mm	760 mm	810 mm	910 mm	660 mm	710 mm	860 mm	960 mm
Outer height	75 mm	75 mm	75 mm	75 mm	75 mm	75 mm	75 mm	75 mm
Inner height	14.4 mm	14.4 mm	14.4 mm	14.4 mm	14.4 mm	14.4 mm	14.4 mm	14.4 mm
Outer width	37.8 mm	37.8 mm	37.8 mm	37.8 mm	37.8 mm	37.8 mm	37.8 mm	37.8 mm
Inner width	30 mm	30 mm	30 mm	30 mm	30 mm	30 mm	30 mm	30 mm
Bending radius	28 mm	28 mm	28 mm	28 mm	28 mm	28 mm	28 mm	28 mm
Travel range	204 mm	407 mm	610 mm	813 mm	204 mm	407 mm	610 mm	813 mm
Number of links	18	23	28	33	18	23	28	33
Pitch	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm
