V-417.E1XYH03
Drag chain for V-412 / V-417 XY assembly; for a 52 mm (2'') travel range of the X axis
V-417.E1XYH Drag Chain for V-41x Positioners
Cable Management for XY Assemblies Consisting of V-412 and V-417 Linear Stages
- For XY assemblies consisting of V-412 linear stages
- For XY assemblies consisting of V-417 linear stages

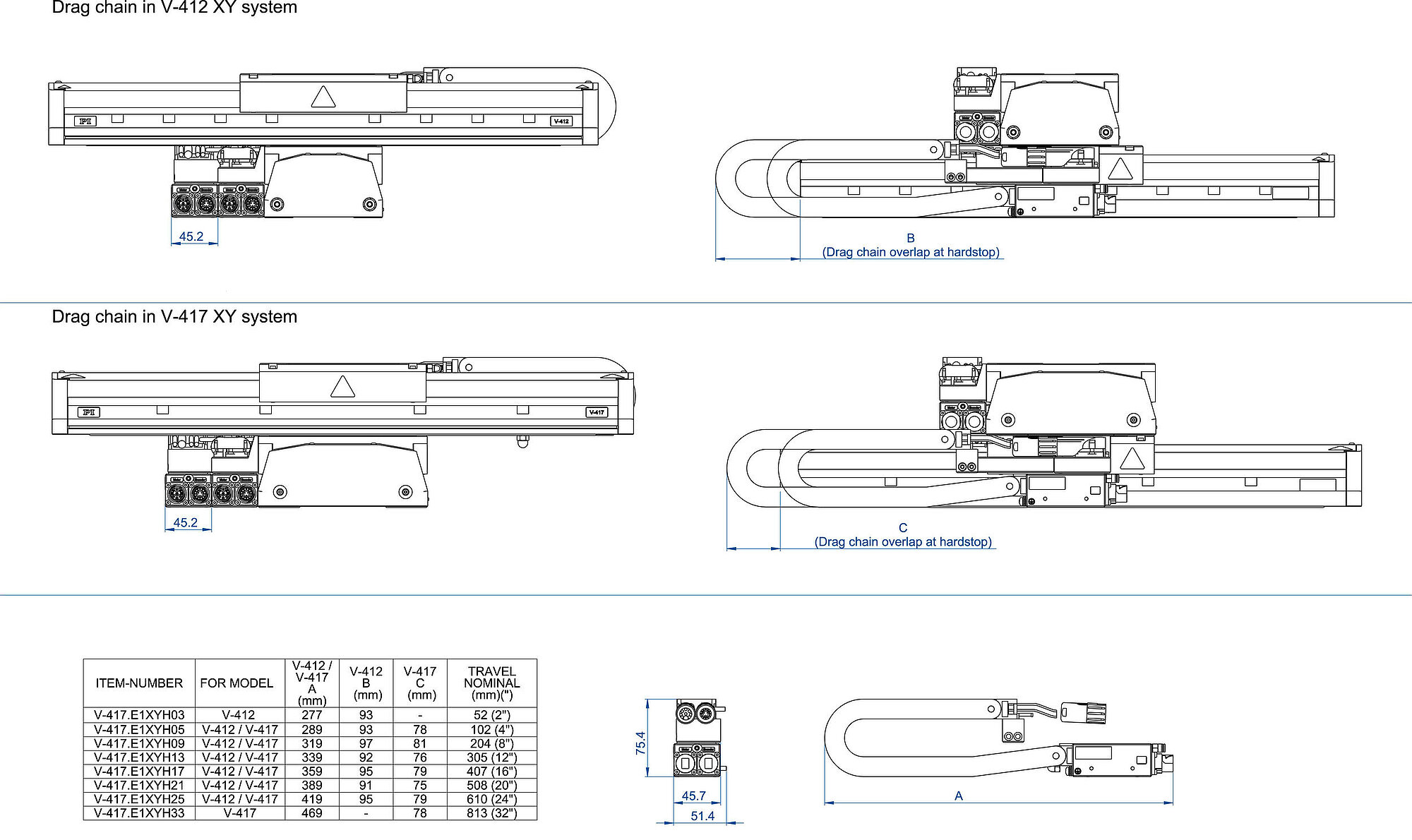

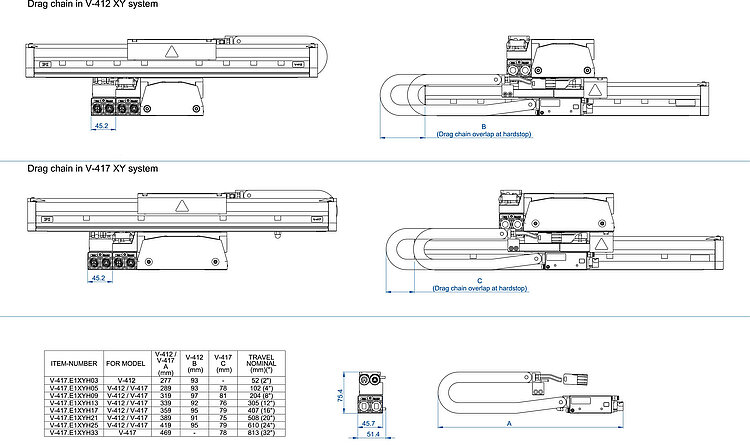

V-417.E1XYH, dimensions in mm
V-417.E1XYH13 with mounting material
V-417.E1XYH Drag Chain for V-41x Positioners
产品描述
规格
下载
报价/订购
Function of drag chain
In XY assemblies consisting of V-412 or V-417 linear stages, the V-417.E1XYHxx drag chain takes over the cable management of the Y axis in X direction. For this purpose, the drag chain is mounted on the X axis.
Drag chains for V-412 and V-417 XY assemblies
Which drag chain for which travel range of the X axis?
- 52 mm travel range: V-417.E1XYH03
- 102 mm travel range: V-417.E1XYH05
- 204 mm travel range: V-417.E1XYH09
- 305 mm travel range: V-417.E1XYH13
- 407 mm travel range: V-417.E1XYH17
- 508 mm travel range: V-417.E1XYH21
- 610 mm travel range: V-417.E1XYH25
- 813 mm travel range: V-417.E1XYH33
When ordering, please note the following:
Regardless of the travel range of the Y axis, the V-417.E1XYHxx drag chain must be selected for the travel range of the X axis.
Specifications
| V-417.E1XYH03 | V-417.E1XYH05 | V-417.E1XYH09 | V-417.E1XYH13 | V-417.E1XYH17 | V-417.E1XYH21 | V-417.E1XYH25 | V-417.E1XYH33 | ||
|---|---|---|---|---|---|---|---|---|---|
| Material | Chain elements: igumid G/GLW | Chain elements: igumid G/GLW | Chain elements: igumid G/GLW | Chain elements: igumid G/GLW | Chain elements: igumid G/GLW | Chain elements: igumid G/GLW | Chain elements: igumid G/GLW | Chain elements: igumid G/GLW | |
| Overall mass | 450 g | 480 g | 545 g | 555 g | 585 g | 605 g | 615 g | 645 g | |
| Maximum velocity | 2 m/s | 2 m/s | 2 m/s | 2 m/s | 2 m/s | 2 m/s | 2 m/s | 2 m/s | |
| Travel range | 52 mm | 102 mm | 204 mm | 305 mm | 407 mm | 508 mm | 610 mm | 813 mm |
Note on overall mass: tolerance ± 5 %
Note on travel range: must correspond to the travel range of the X axis (lower axis)
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
V-417.E1XYH05
Drag chain for V-412 / V-417 XY assembly; for a 102 mm (4'') travel range of the X axis
V-417.E1XYH09
Drag chain for V-412 / V-417 XY assembly; for a 204 mm (8'') travel range of the X axis
V-417.E1XYH13
Drag chain for V-412 / V-417 XY assembly; for a 305 mm (12'') travel range of the X axis
V-417.E1XYH17
Drag chain for V-412 / V-417 XY assembly; for a 407 mm (16'') travel range of the X axis
V-417.E1XYH21
Drag chain for V-412 / V-417 XY assembly; for a 508 mm (20'') travel range of the X axis
V-417.E1XYH25
Drag chain for V-412 / V-417 XY assembly; for a 610 mm (24'') travel range of the X axis
V-417.E1XYH33
Drag chain for V-412 / V-417 XY assembly; for a 813 mm (32'') travel range of the X axis
