P-840.10
Preloaded piezo actuator; PICMA® piezo actuator drive; 15 µm travel range (open loop); 32 mm length; push force capacity 1000 N; pull force capacity 50 N; LEMO connector; 1 m cable length

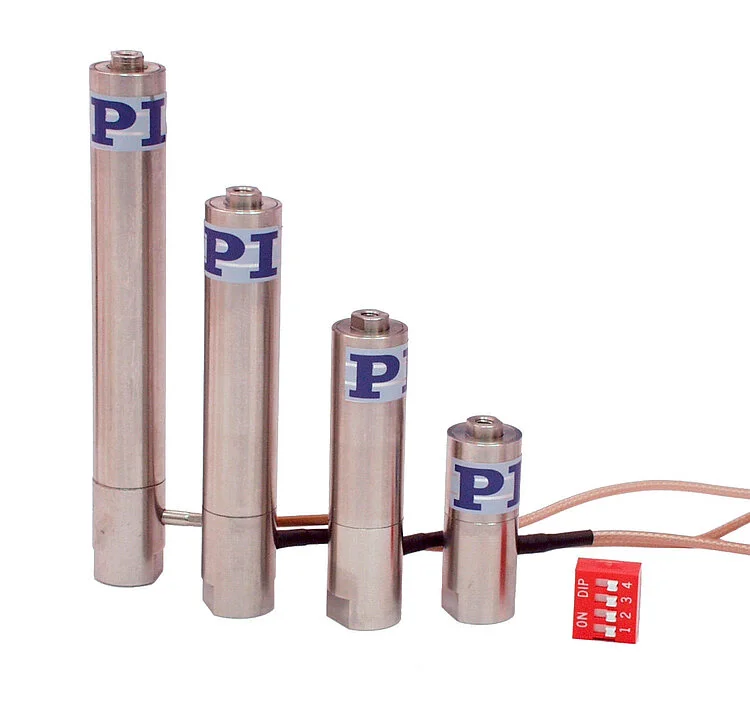

P-840 Preloaded Piezo Actuators
Compact Actuators for High Loads and Forces
- Outstanding lifetime due to PICMA® piezo actuators
- Travel range to 90 µm
- Compact housing
- Push force capacity to 1000 N
- Pull force capacity to 50 N
- µs response time
- Subnanometer resolution
- Versions with spherical tip

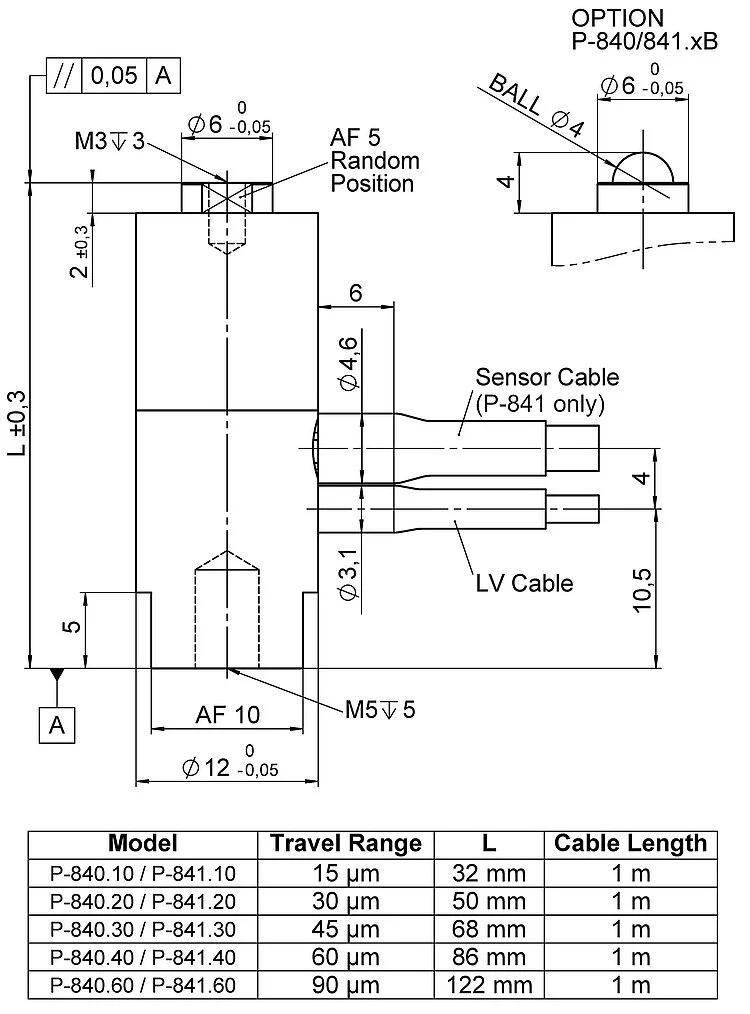

P-840 / P-841, dimensions in mm. Sensor included only with P-841.
P-840 Preloaded Piezo Actuators
产品描述
规格
下载
报价/订购
Application fields
- Static and dynamic precision positioning
- Fiber positioning
- Laser tuning
- Nanotechnology
Outstanding lifetime thanks to PICMA® piezo actuators
The PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.
Specifications
Specifications
| Motion | P-840.10 | P-840.1B | P-840.20 | P-840.2B | P-840.30 | P-840.3B | P-840.40 | P-840.4B | P-840.60 | P-840.6B | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Active axes | Z | Z | Z | Z | Z | Z | Z | Z | Z | Z | |
| Travel range in Z, open loop, at 0 to 100 V | 15 µm | 15 µm | 30 µm | 30 µm | 45 µm | 45 µm | 60 µm | 60 µm | 90 µm | 90 µm | ±20 % |
| Positioning | P-840.10 | P-840.1B | P-840.20 | P-840.2B | P-840.30 | P-840.3B | P-840.40 | P-840.4B | P-840.60 | P-840.6B | Tolerance |
| Resolution in Z, open loop | 0.15 nm | 0.15 nm | 0.3 nm | 0.3 nm | 0.45 nm | 0.45 nm | 0.6 nm | 0.6 nm | 0.9 nm | 0.9 nm | typ. |
| Drive Properties | P-840.10 | P-840.1B | P-840.20 | P-840.2B | P-840.30 | P-840.3B | P-840.40 | P-840.4B | P-840.60 | P-840.6B | Tolerance |
| Drive type | PICMA® | PICMA® | PICMA® | PICMA® | PICMA® | PICMA® | PICMA® | PICMA® | PICMA® | PICMA® | |
| Electrical capacitance in Z | 1.5 µF | 1.5 µF | 3 µF | 3 µF | 4.5 µF | 4.5 µF | 6 µF | 6 µF | 9 µF | 9 µF | ±20 % |
| Mechanical Properties | P-840.10 | P-840.1B | P-840.20 | P-840.2B | P-840.30 | P-840.3B | P-840.40 | P-840.4B | P-840.60 | P-840.6B | Tolerance |
| Stiffness in Z | 57 N/µm | 57 N/µm | 27 N/µm | 27 N/µm | 19 N/µm | 19 N/µm | 15 N/µm | 15 N/µm | 10 N/µm | 10 N/µm | ±20 % |
| Resonant frequency in Z, unloaded | 18 kHz | 18 kHz | 14 kHz | 14 kHz | 10 kHz | 10 kHz | 8.5 kHz | 8.5 kHz | 6 kHz | 6 kHz | ±20 % |
| Permissible push force in Z | 1000 N | 1000 N | 1000 N | 1000 N | 1000 N | 1000 N | 1000 N | 1000 N | 1000 N | 1000 N | max. |
| Permissible pull force in Z | 50 N | 50 N | 50 N | 50 N | 50 N | 50 N | 50 N | 50 N | 50 N | 50 N | max. |
| Permissible torque in θZ | 0.35 N·m | 0.35 N·m | 0.35 N·m | 0.35 N·m | 0.35 N·m | max. | |||||
| Mass without cable | 20 g | 20 g | 28 g | 28 g | 46 g | 46 g | 54 g | 54 g | 62 g | 62 g | ±5 % |
| Material | Housing / tip: Stainless steel | Housing / tip: Stainless steel | Housing / tip: Stainless steel | Housing / tip: Stainless steel | Housing / tip: Stainless steel | Housing / tip: Stainless steel | Housing / tip: Stainless steel | Housing / tip: Stainless steel | Housing / tip: Stainless steel | Housing / tip: Stainless steel | |
| Length | 32 mm | 32 mm | 50 mm | 50 mm | 68 mm | 68 mm | 86 mm | 86 mm | 122 mm | 122 mm | ±0,3 mm |
| Mechanical interface | Spherical tip | Spherical tip | Spherical tip | Spherical tip | Spherical tip | ||||||
| Miscellaneous | P-840.10 | P-840.1B | P-840.20 | P-840.2B | P-840.30 | P-840.3B | P-840.40 | P-840.4B | P-840.60 | P-840.6B | Tolerance |
| Operating temperature range | -20 to 80 °C | -20 to 80 °C | -20 to 80 °C | -20 to 80 °C | -20 to 80 °C | -20 to 80 °C | -20 to 80 °C | -20 to 80 °C | -20 to 80 °C | -20 to 80 °C | |
| Connector | LEMO FFA.00.250 | LEMO FFA.00.250 | LEMO FFA.00.250 | LEMO FFA.00.250 | LEMO FFA.00.250 | LEMO FFA.00.250 | LEMO FFA.00.250 | LEMO FFA.00.250 | LEMO FFA.00.250 | LEMO FFA.00.250 | |
| Cable length | 1 m | 1 m | 1 m | 1 m | 1 m | 1 m | 1 m | 1 m | 1 m | 1 m | |

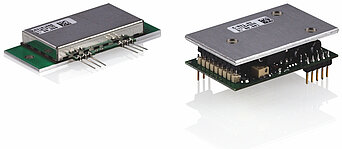

| Recommended controllers / drivers | E-503, E-505, E-610, E-617, E-621, E-625, E-663, E-665, E-709, E-831 | E-503, E-505, E-610, E-617, E-621, E-625, E-663, E-665, E-709, E-831 | E-503, E-505, E-610, E-617, E-621, E-625, E-663, E-665, E-709, E-831 | E-503, E-505, E-610, E-617, E-621, E-625, E-663, E-665, E-709, E-831 | E-503, E-505, E-610, E-617, E-621, E-625, E-663, E-665, E-709, E-831 | E-503, E-505, E-610, E-617, E-621, E-625, E-663, E-665, E-709, E-831 | E-503, E-505, E-610, E-617, E-621, E-625, E-663, E-665, E-709, E-831 | E-503, E-505, E-610, E-617, E-621, E-625, E-663, E-665, E-709, E-831 | E-503, E-505, E-610, E-617, E-621, E-625, E-663, E-665, E-709, E-831 | E-503, E-505, E-610, E-617, E-621, E-625, E-663, E-665, E-709, E-831 |
Stiffness in Z: Static large-signal stiffness; dynamic small-signal stiffness is approx. 30 % higher.
The resolution of the system is only limited by the noise of the amplifier and measuring technology because PI piezo actuators are free of friction.
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
P-840.1B
Preloaded piezo actuator; PICMA® piezo actuator drive; 15 µm travel range (open loop); 32 mm length; push force capacity 1000 N; pull force capacity 50 N; spherical tip; LEMO connector; 1 m cable length
P-840.20
Preloaded piezo actuator; PICMA® piezo actuator drive; 30 µm travel range (open loop); 50 mm length; push force capacity 1000 N; pull force capacity 50 N; LEMO connector; 1 m cable length
P-840.2B
Preloaded piezo actuator; PICMA® piezo actuator drive; 30 µm travel range (open loop); 50 mm length; push force capacity 1000 N; pull force capacity 50 N; spherical tip; LEMO connector; 1 m cable length
P-840.30
Preloaded piezo actuator; PICMA® piezo actuator drive; 45 µm travel range (open loop); 68 mm length; push force capacity 1000 N; pull force capacity 50 N; LEMO connector; 1 m cable length
P-840.3B
Preloaded piezo actuator; PICMA® piezo actuator drive; 45 µm travel range (open loop); 68 mm length; push force capacity 1000 N; pull force capacity 50 N; spherical tip; LEMO connector; 1 m cable length
P-840.40
Preloaded piezo actuator; PICMA® piezo actuator drive; 60 µm travel range (open loop); 86 mm length; push force capacity 1000 N; pull force capacity 50 N; LEMO connector; 1 m cable length
P-840.4B
Preloaded piezo actuator; PICMA® piezo actuator drive; 60 µm travel range (open loop); 86 mm length; push force capacity 1000 N; pull force capacity 50 N; spherical tip; LEMO connector; 1 m cable length
P-840.60
Preloaded piezo actuator; PICMA® piezo actuator drive; 90 µm travel range (open loop); 122 mm length; push force capacity 1000 N; pull force capacity 50 N; LEMO connector; 1 m cable length
P-840.6B
Preloaded piezo actuator; PICMA® piezo actuator drive; 90 µm travel range (open loop); 122 mm length; push force capacity 1000 N; pull force capacity 50 N; spherical tip; LEMO connector; 1 m cable length
