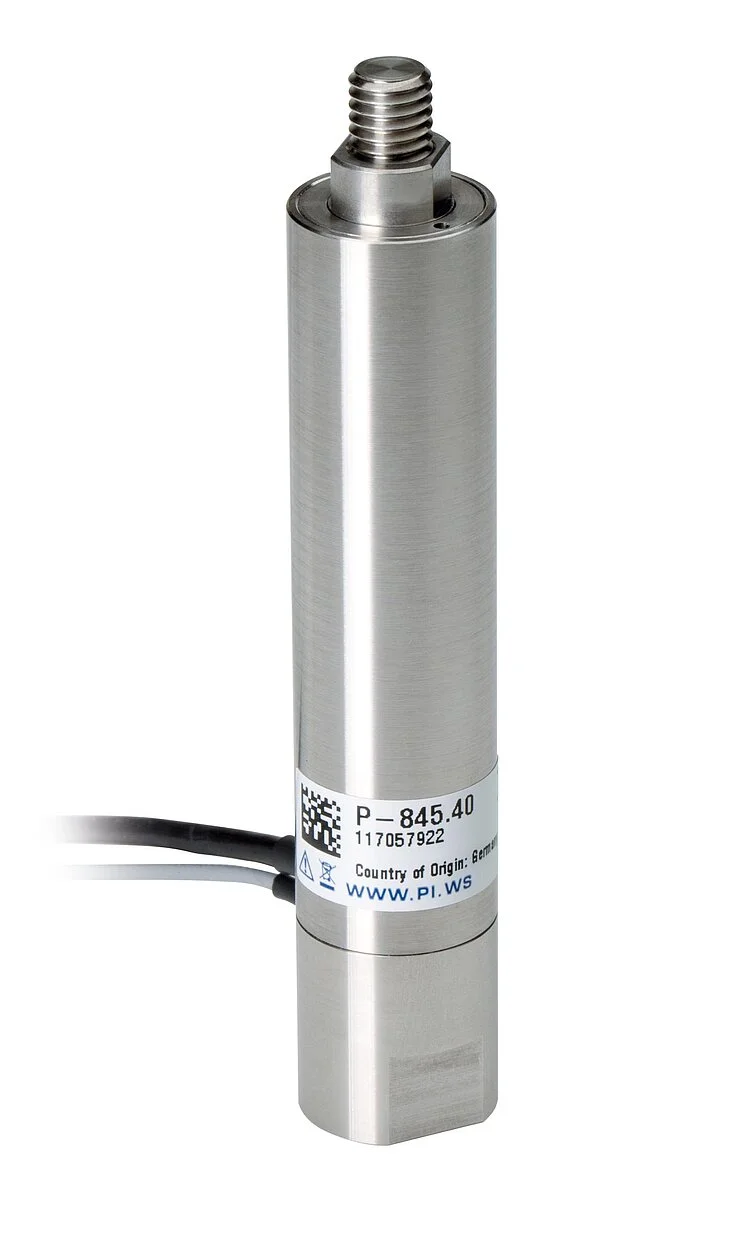

P-845 Preloaded Piezo Actuators

For Very High Loads and Forces, with Position Sensor

  • Outstanding lifetime due to PICMA® piezo actuators
  • Travel range to 90 µm
  • Push force capacity to 3000 N
  • Pull force capacity to 700 N
  • µs response time
  • Subnanometer resolution
P-845 Preloaded Piezo Actuators
产品描述 规格 下载 报价/订购

Application fields

  • Static and dynamic precision positioning
  • Fiber positioning
  • Laser tuning
  • Nanotechnology

Outstanding lifetime thanks to PICMA® piezo actuators

The PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

Specifications

数据表

数据表P-845

版本/日期
2024-01-09
pdf - 521 KB
版本/日期
2024-01-09
pdf - 522 KB
版本/日期
2018-10-15
pdf - 686 KB

Downloads

产品注解

产品注解

Product Change Notification P-8XX.XX

版本/日期
2023-02-22
pdf - 92 KB
产品注解

Product Change Notification Piezo Actuator Driven Products

版本/日期
2021-04-19
pdf - 377 KB
English

数据表

数据表

数据表P-845

版本/日期
2024-01-09
pdf - 521 KB
版本/日期
2024-01-09
pdf - 522 KB
版本/日期
2018-10-15
pdf - 686 KB

文件

文件

简单说明PZ303

内置达100伏的PICMA促动器

版本/日期
1.2.0 11/2020
pdf - 958 KB
版本/日期
1.2.0 11/2020
pdf - 961 KB
文件

用户使用手册P845M0001

P-845预载压电促动器

版本/日期
2021-01-29
pdf - 2 MB
版本/日期
2021-01-29
pdf - 2 MB
文件

用户使用手册P845M0002

P-845.xxV预载压电促动器(真空版本)

版本/日期
2021-02-23
pdf - 3 MB
版本/日期
2021-02-23
pdf - 3 MB

3D模型

3D模型

P-844 / P-845 3-D模型

zip - 92 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

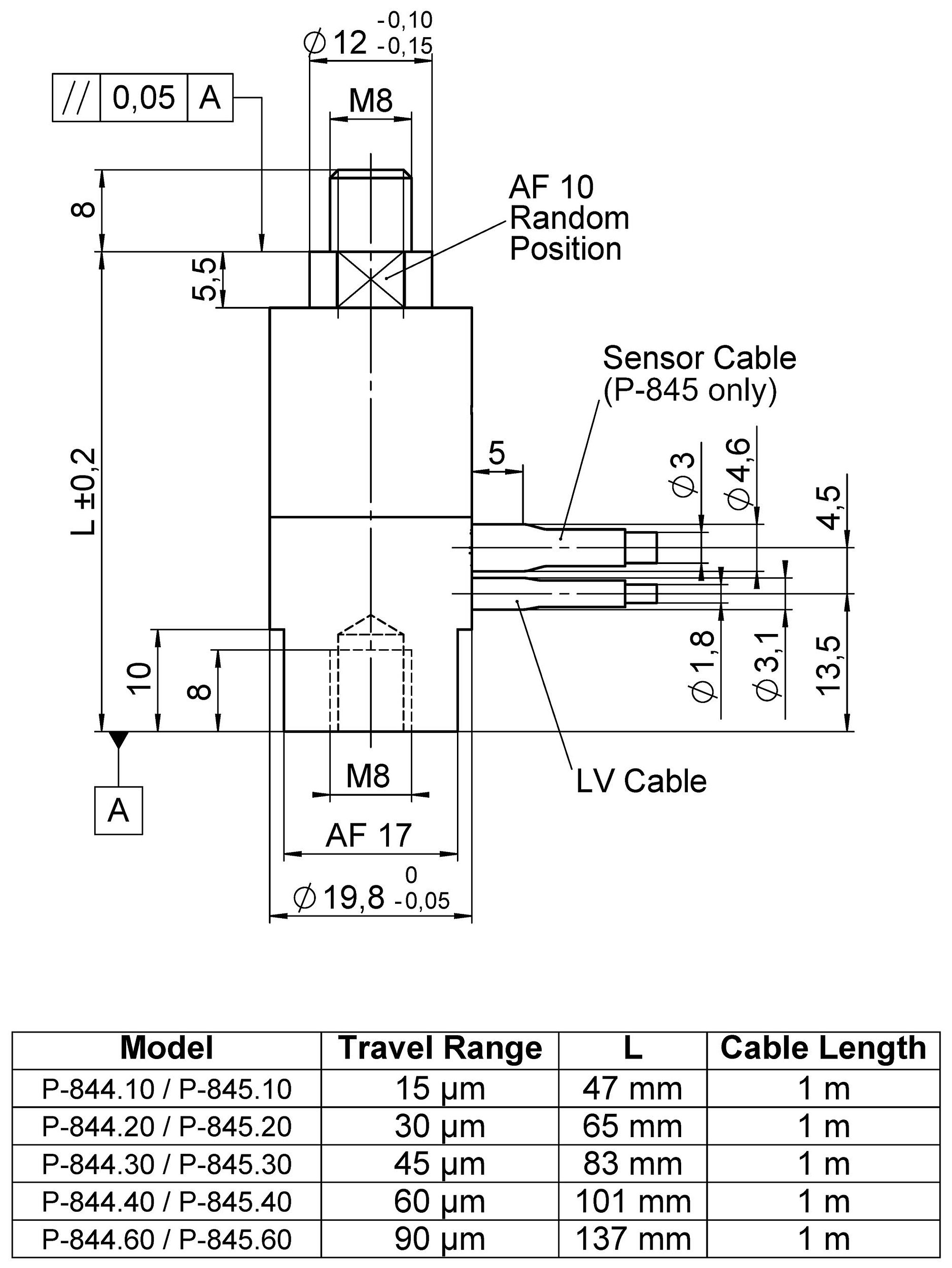

P-845.10

Preloaded piezo actuator; PICMA® piezo actuator drive; 15 µm travel range; 47 mm length; push force capacity 3000 N; pull force capacity 700 N; SGS, direct position measuring; LEMO connectors; 1 m cable length

P-845.20

Preloaded piezo actuator; PICMA® piezo actuator drive; 30 µm travel range; 65 mm length; push force capacity 3000 N; pull force capacity 700 N; SGS, direct position measuring; LEMO connectors; 1 m cable length

P-845.30

Preloaded piezo actuator; PICMA® piezo actuator drive; 45 µm travel range; 83 mm length; push force capacity 3000 N; pull force capacity 700 N; SGS, direct position measuring; LEMO connectors; 1 m cable length

P-845.40

Preloaded piezo actuator; PICMA® piezo actuator drive; 60 µm travel range; 101 mm length; push force capacity 3000 N; pull force capacity 700 N; SGS, direct position measuring; LEMO connectors; 1 m cable length

P-845.60

Preloaded piezo actuator; PICMA® piezo actuator drive; 90 µm travel range; 137 mm length; push force capacity 3000 N; pull force capacity 700 N; SGS, direct position measuring; LEMO connectors; 1 m cable length
