PICA压电堆叠促动器

Stack、Power和Thru

堆叠设计的PICA压电线性促动器非常可靠,具有大位移。操作电压是1000V。


  • PICA Stack 促动器提供高力.
  • PICA Thru 带内孔,用于预应力或作为光学应用中的通光孔径
  • PICA功率压电促动器使用允许更高操作温度的压电材料,因此具有更高动态。

PICA堆叠型促动器

PICA功率压电陶瓷促动器

P-010.xxP – P-056.xxP PICA功率压电陶瓷促动器

用于高动态应用

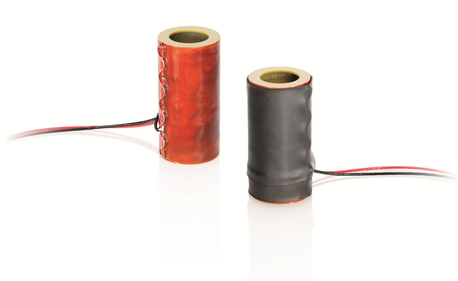

PICA穿环促动器

P-010.xxH – P-025.xxH PICA穿环促动器

带内孔的高负载压电陶瓷促动器
PICA堆叠型压电陶瓷促动器

P-007 – P-056 PICA堆叠型压电陶瓷促动器

高力、大位移、柔性生产

预加载PICA促动器

P-216 PICA Power压电陶瓷促动器

带传感器选项的预载压电陶瓷促动器(HVPZT)

P-235 PICA Power压电陶瓷促动器

带传感器选项的预载高负载压电陶瓷促动器(HVPZT)

For PICA Stack/Power/Thru Actuators

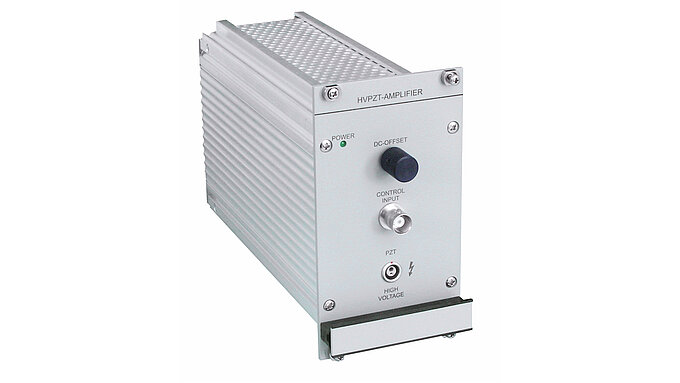

Piezo amplifiers for PICA Actuators offer a voltage range of up to 1100 V, which is available as unipolar or bipolar voltage. Amplifiers with high output current allow dynamic operation of the actuators and precise positioning while requiring low power.

Learn more

定制

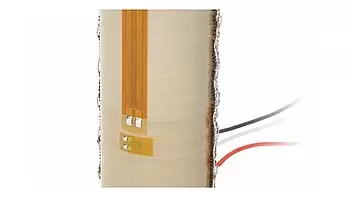

PICA压电线性促动器具有很多形状。根据应用的不同,可以与适当的陶瓷或金属端件、额外涂层、温度传感器等装配。根据要求,我们很乐意为您提供定制产品。

应用与市场

  • 激光技术与激光束控制
  • 高负荷精密定位
  • 精密机械与精密加工
  • 交换应用
  • 主动减振
  • 自适应系统技术

询问工程师

通过电子邮件或电话从当地PI Ceramic 销售工程师处快速获取解答。

下载

样本

Piezoelectric Actuators

Components, Technologies, Operation

版本/日期
CAT128 R2
pdf - 11 MB
版本/日期
CAT128 R2
pdf - 5 MB
白皮书

PICA Stack Reliability Investigation

Some typical test results that demonstrate the reliability of PICA Stack actuators under AC- and DC-operation conditions.

版本/日期
WP_pi11
pdf - 44 KB
